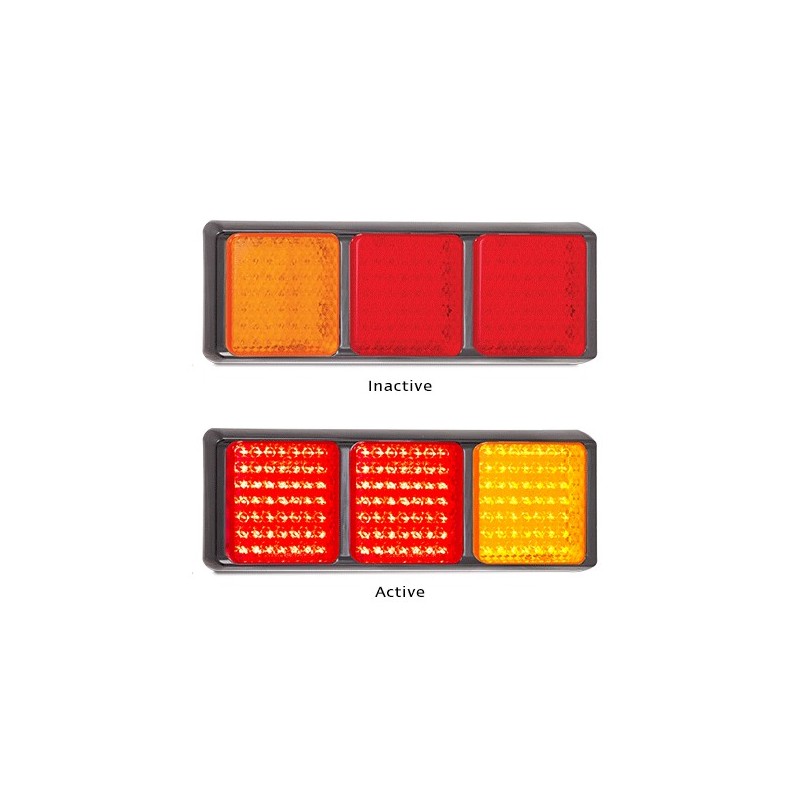

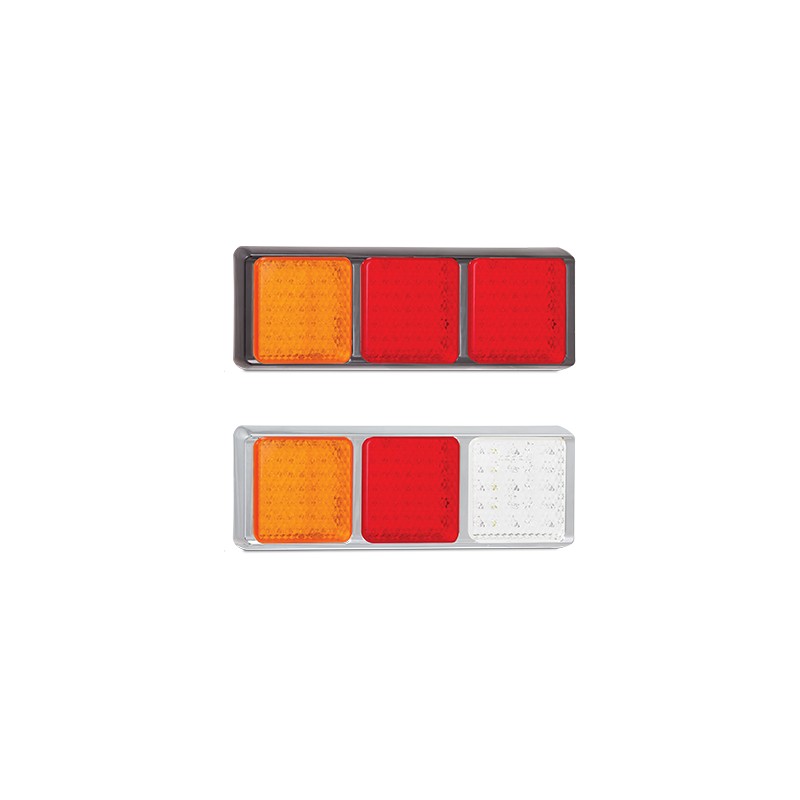

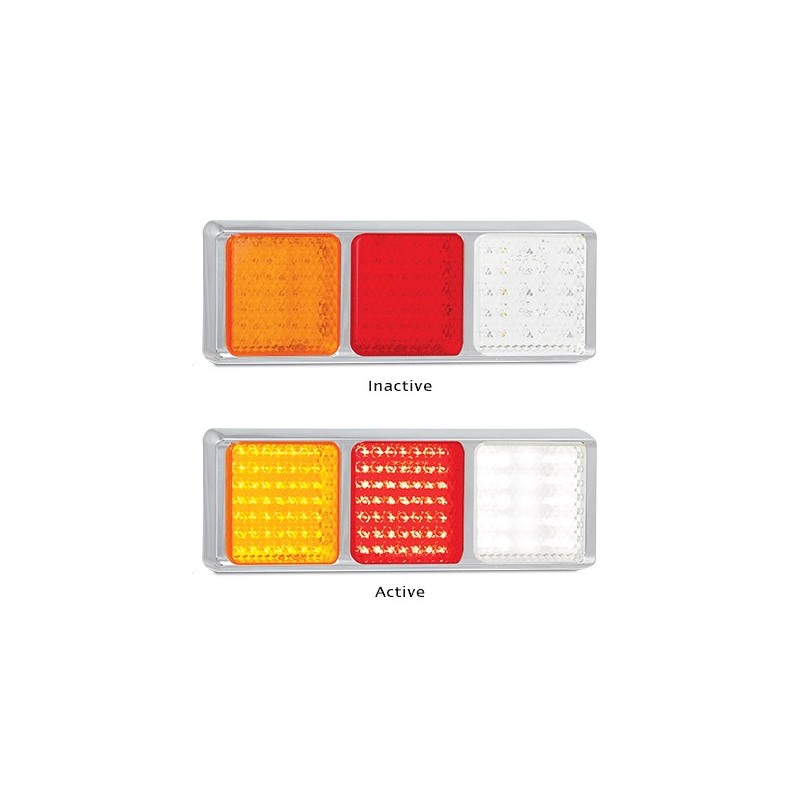

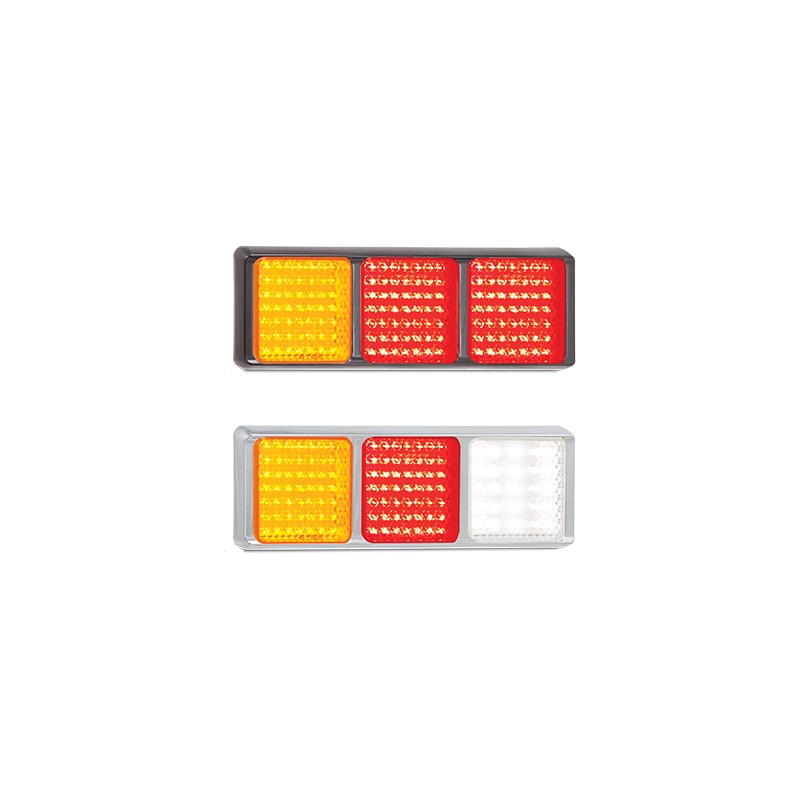

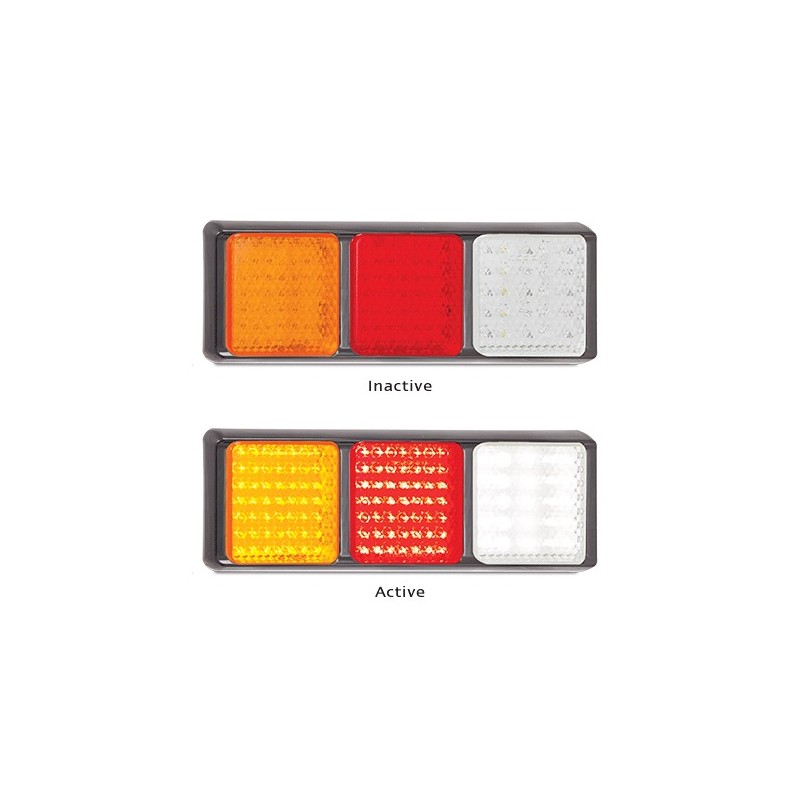

100 Triple Series
100 Triple Series
100 Triple Series
100 Triple Series
100 Triple Series
100 Triple Series

100 Triple Series

Tax included. Shipping calculated at checkout.

Features / Specifications

  • Individual Lens Replacements
  • ADR approved
  • IP67 100% Water proof
  • 12-24 Volt
  • 5 Year Warranty
  • 350mm x 120mm x 31mm

Download Data Sheet

Fitting Instructions

Horizontally mount bracket onto flat surface with screws provided, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.

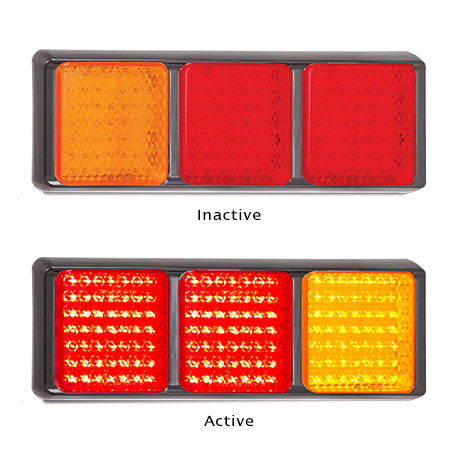

Stop/Tail/Indicator
Part No.
100BARRM 12-24 Volt, Blister
.
LED Qty 147
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.38A  0.04A  0.38A
@28V 0.24A 0.07A 0.23A
Approvals Function Category CRN
ADR Stop/Tail 49/00 33402
ADR Indicator 6/00/2A 33156

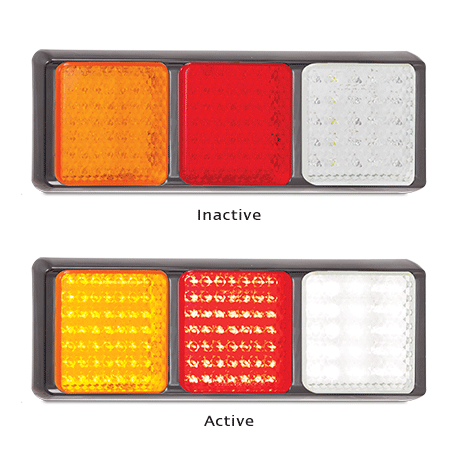

top/Tail/Indicator/Reverse
Part No.
100BARWM 12-24 Volt, Blister
.
LED Qty 123
Cable 40cm
Draw Stop Tail Ind Rev
@13.8V  0.38A  0.04A 0.38A  0.31A
@28V 0.24A 0.07A 0.23A 0.17A
Approvals Function Category CRN
ADR Stop/Tail 49/00 33402
ADR Indicator 6/00/2A 33156
ADR Reverse 1/00

35793

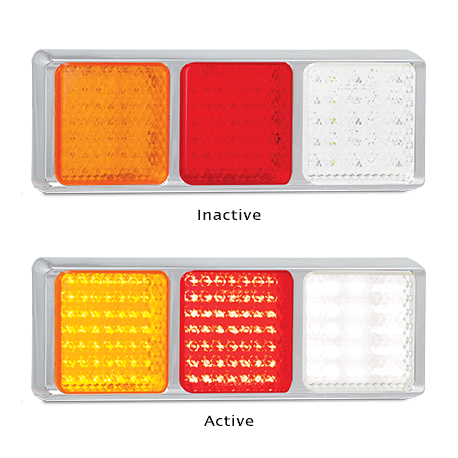

Stop/Tail/Indicator/Reverse
Part No.
100CARWM 12-24 Volt, Blister
.
LED Qty 123
Cable 40cm
Draw Stop Tail Ind Rev
@13.8V  0.38A  0.04A 0.29A  0.31A
@28V 0.25A 0.07A 0.23A 0.17A
Approvals Function Category CRN
ADR Stop/Tail 49/00 33402
ADR Indicator 6/00/2A 33156
ADR Reverse 1/00 35793
