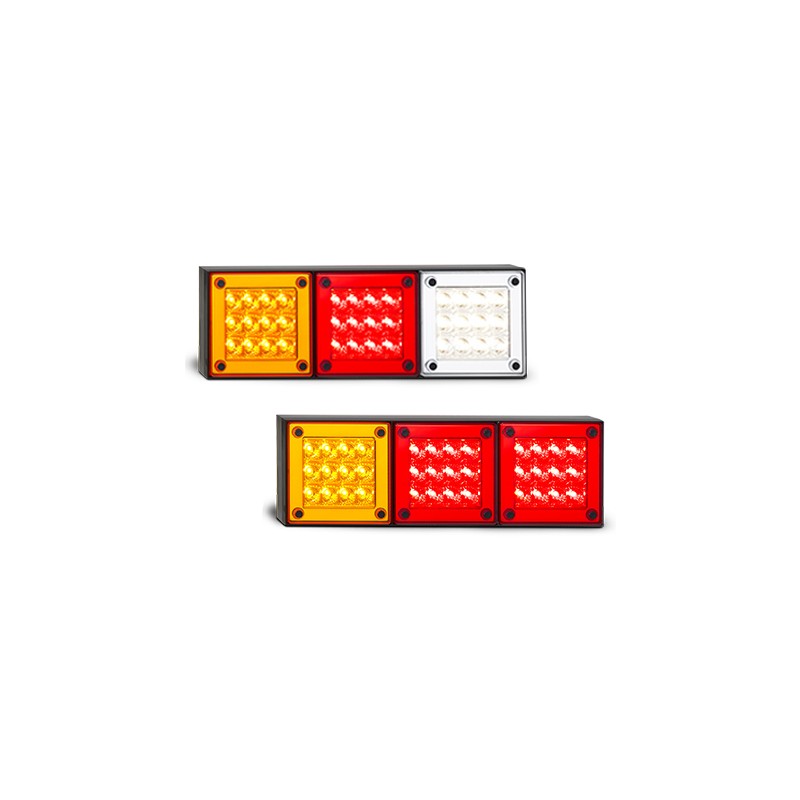

280 Series Tail Lights
Features / Specifications
Sold as Individual not Pair
- New Design Mini Jumbo
- ECE Approved
- IP67 100% Water proof
- 12-24 Volt
- 5 Year Warranty
- 282mm x 95mm x 28mm

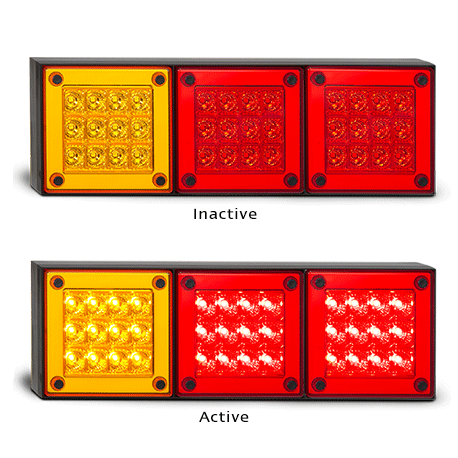

| Stop/Tail/Indicator | |||
 |
|||
| Part No. | |||
| 280ARRM | 12-24 Volt, Single Blister | ||
| 280ARRMB | 12-24 Volt, Single Bulk | ||
| . | |||
| LED Qty | 36 | ||
| Cable | 1.2m | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.30A | 0.04A | 0.14A |
| @28V | 0.22A | 0.06A | 0.11A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.11544 | |
| ECE | Indicator | 2a-E9-01.11545 | |
| CTA | Stop/Tail/Ind | CTA-060088 | |
| . | |||

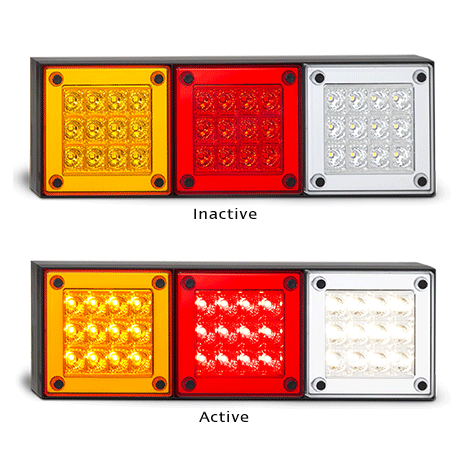

| Stop/Tail/Indicator/Reverse | ||||
 |
||||
| Part No. | ||||
| 280ARWM | 12-24 Volt, Single Blister | |||
| 280ARWMB | 12-24 Volt, Single Bulk | |||
| . | ||||
| LED Qty | 36 | |||
| Cable | 1.2m | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.15A | 0.02A | 0.14A | 0.17A |
| @28V | 0.11A | 0.03A | 0.11A | 0.13A |
| Approvals | Function | Approval No. | ||
| ECE | Stop/Tail | R1-S1-E9-02.11544 | ||
| ECE | Indicator | 2a-E9-01.11545 | ||
| ECE | Reverse | AR-E9-00.1207 | ||
| CTA | Stop/Tail/Ind/Rev | CTA-060088 | ||
