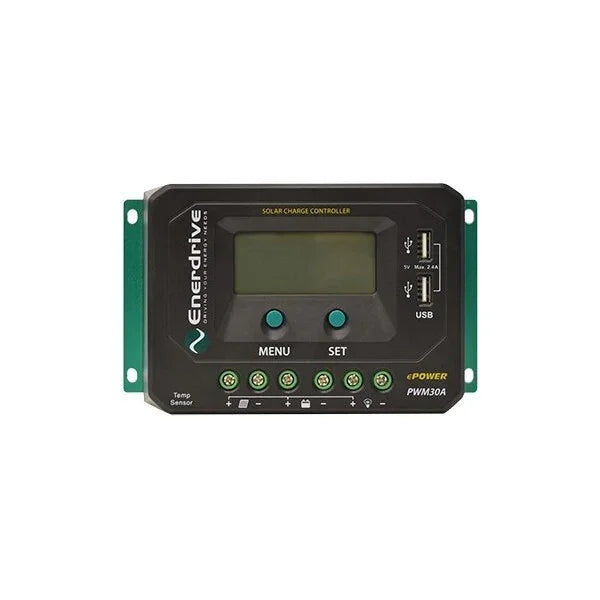

ENERDRIVE PWM 30A Solar Charge Controller
ENERDRIVE EPOWER PWM 30A SOLAR CHARGE CONTROLLER
For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Specifications:
- Amps 30.0
- Operating Temperature Range -25˚C+55˚C | -20˚C+70˚C (LCD)
- Humidity 95% N.C
- Output 5VDC/2.4A (USB, Total)
- Open Circuit Voltage 12V - 25 VOC / 24V - 50 VOC
- Enclosure Class IP30
- Nominal Voltage 12/24 VDC
- Charge Voltage Absorption Sealed 14.4V / Gel 14.2V / Flooded 14.6V
- Charge Voltage Float 13.8V (Sealed / Gel / Flooded)
- Input Voltage 9V - 32V
- Warranty 5 Years
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
